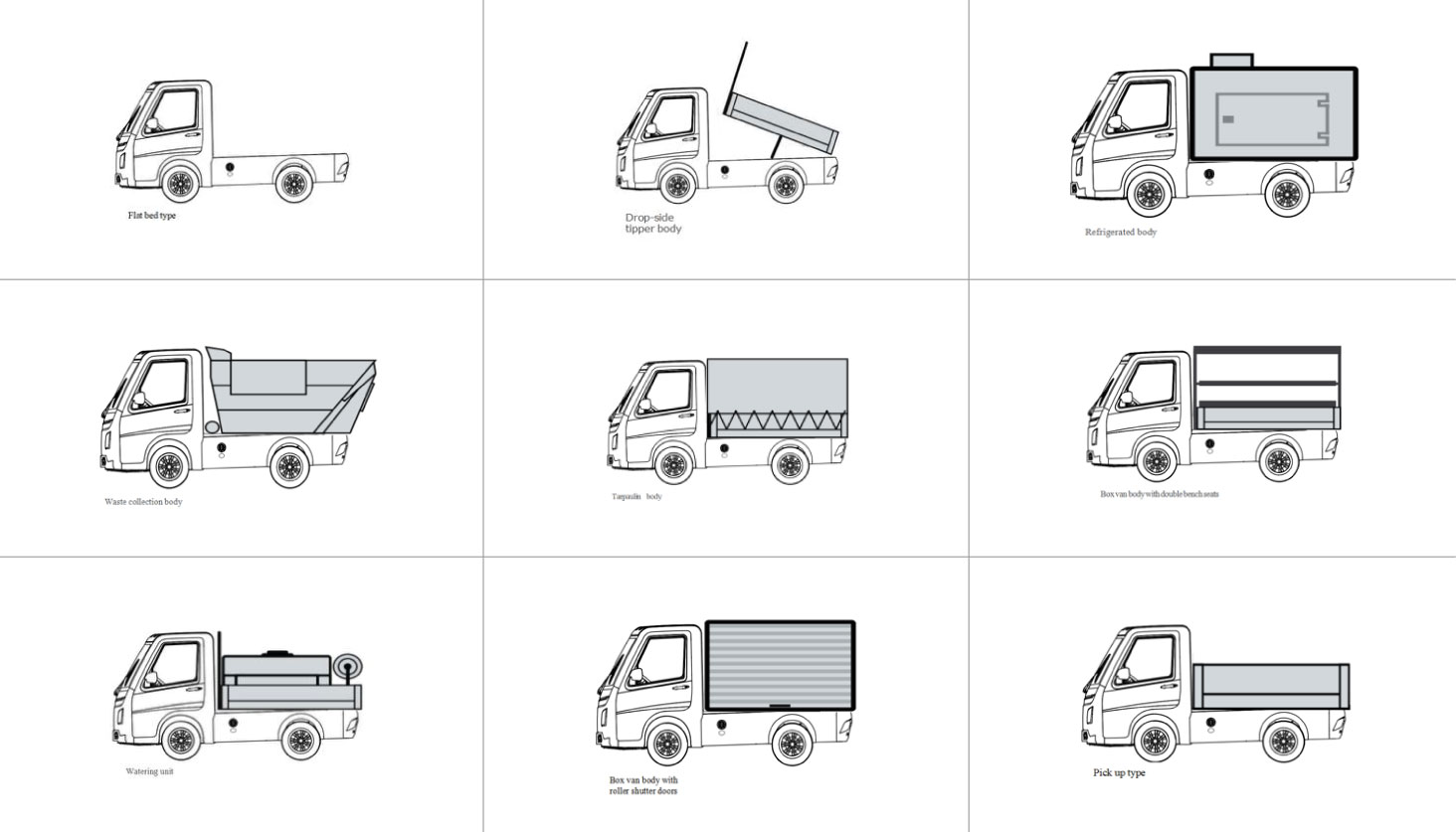

TEV puede equiparse con diversas configuraciones, como caja volquete, camión de caja, plataforma, recolector de residuos y más. Está diseñado para satisfacer las necesidades profesionales diarias.
Equipado con un avanzado sistema de recuperación de energía. Durante la desaceleración, convierte la energía cinética en energía eléctrica.
| Item | TEV Parameter 80 km/h |
TEV Parameter 65 km/h |
|---|---|---|
| Size: LxWxH(mm) | 3685-1400-1910 | |
| Aluminum Cargo Hopper: LxWxH(mm) | 2080×1280×260 | |
| Cargo Box: LxWxH(mm) | 2080 1280×1200 | |
| Chassis clearance(mm) | 160 | |
| Wheel Base(mm) | 1800 | |
| Seats | 2 | |
| Steering | LHD/RHD(Optional) | |
| Front Track(mm) | 1120 | |
| Rear Track(mm) | 1160 | |
| Curb Weight (Without battery)(kg) | 598 | 588 |
| Unloaded Braking Distance(m) | 7.5 | |
| Loading Capacity(kg) | 650 | |
| Min. Turning Radius(m) | 54.2 | |
| Approach/Departure("") | 15/25 | 14,8 |
| Motor Type (KW) (Permanent magnet syncheonqus motor) | 15 | |
| Speed(km/h) | 80 | |
| Acceleration Time(s) | 21.5 | 15 |
| Battery Capacity(KWh) | 13.4/20.6/27.2 | 20.6/27.2 |
| Range(km) | 170-200/220-250 | 110 140/190-220/240-270- |
| Climbing Requirements(%) | 15 | |
| Battery Type | Lithium iron phosphate battery(LFP)LiFePO4 | |
| System Voltage(v) | 89.6 | |
| Charge Mode | Home charging +AC Charging station | |
| Charge Time(h) | 4-6.5 | 6.5-10 |
| Motor Driving Mode | Spur gear reducer drive | |
| Car Body Structure | Separate frame construction | |
| Front/Rear Suspension type | Front independent suspension/rear axle type | |
| Front/Rear brake type | Disc brakes/ABS | |
| ABS anti-lock braking system | ✔ | |
| Airbag | Main driver seat(optional) | |
| Electric Steering Assist System(EPS) | ✔ | |
| Seat Belt Warning(Main Driver) | ✔ | |
| Central control Lock | ✔ | |
| Reversing Camera | ✔ | |
| Digital Rearview Mirror | ✔ | |
| Speaker | ✔ | |
| Reverse Buzzer | ✔ | |
| Electric vacuum auxiliary braking system | ✔ | |
| Smart LCD Display | ✔ | |
| Headlights, Day lights, Rear taillights | ✔ | |
| Power Adjust Rearview Mirror | ✔ | |
| Air Conditioner | optional | |
| Electric Wiper | ✔ | |
| Window | Electric control | |
| Tyre | 175/65R14 | |
| Intelligent Sharing Software | optional | optional |
| Attachment Device | Aluminum cargo hopper, Aluminum cargo box, cold chain box garbage transfer bucket road cleaning and customization | |
| FU Homologation | EEC(L7e-CU) | |
